Factory-Backed S07 DC Charging Projects and Quality Control
YANTU supports S07 DC charging projects for importers, distributors and service teams. We confirm the regional DC connector, input plug, site supply and cable length for the order, then coordinate samples, production checks and delivery planning.
Choose the S07 7 kW DC Connector for Your Market

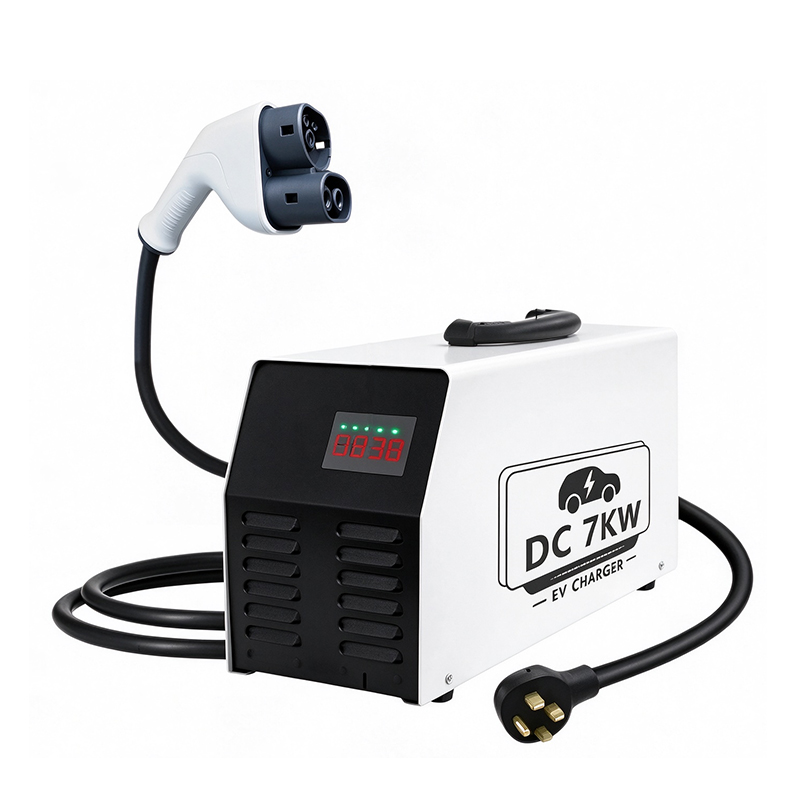

S07 has a carry handle for relocation between prepared charging positions and a single vehicle connector. The catalog checks CCS2, CCS1, CHAdeMO and GB/T at 7 kW only. Its 15, 20, 30 and 40 kW columns have no connector checks. Select one connector standard for the destination market; the matrix does not mean four guns are supplied with one charger.
|
DC connector
|
7 kW
|
15 kW
|
20 kW
|
30 kW
|
40 kW
|
|---|---|---|---|---|---|
|
CCS2
|
✓
|
Not listed
|
Not listed
|
Not listed
|
Not listed
|
|
CCS1
|
✓
|
Not listed
|
Not listed
|
Not listed
|
Not listed
|
|
CHAdeMO
|
✓
|
Not listed
|
Not listed
|
Not listed
|
Not listed
|
|
GB/T
|
✓
|
Not listed
|
Not listed
|
Not listed
|
Not listed
|

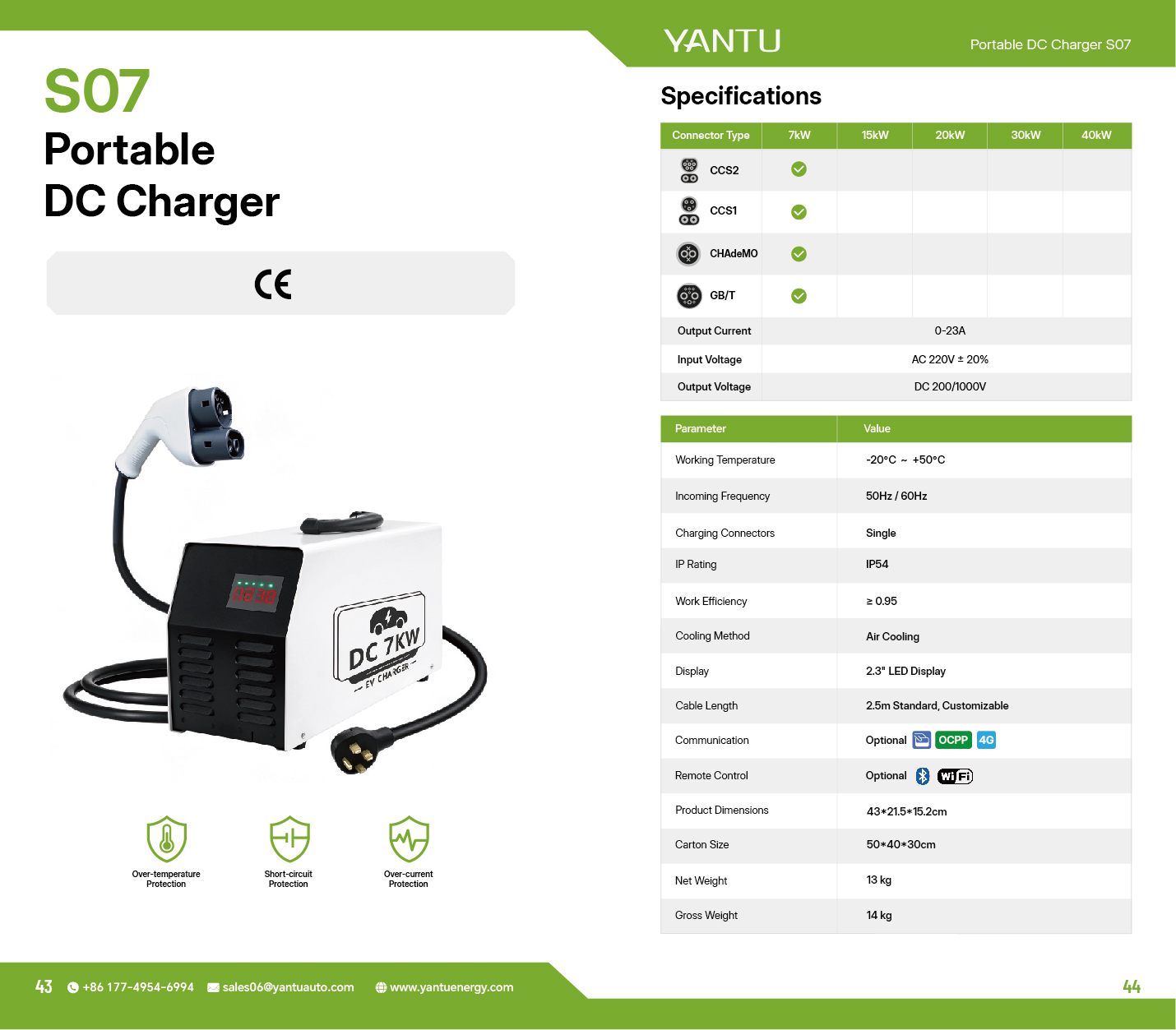

S07 7 kW DC Charger Specifications
The S07 catalog checks one 7 kW version. It lists AC 220 V ±20% input, a DC 200–1000 V continuous output range and a 0–23 A output-current range. The unit has one charging connector, air cooling, a 2.3-inch LED display and a 2.5 m standard cable with customizable length.
|
Catalog item
|
S07 7 kW value
|
|---|---|
|
AC input voltage
|
220 V ±20%
|
|
DC output voltage
|
200–1000 V continuous range, confirmed from the catalog notation “DC 200/1000 V”
|
|
Output current
|
0–23 A catalog range
|
|
Charging connectors
|
Single
|
|
Product dimensions
|
43 × 21.5 × 15.2 cm
|
|
Carton size
|
50 × 40 × 30 cm
|
|
Net weight
|
13 kg
|
|
Gross weight
|
14 kg
|
|
Shared specification
|
S07 catalog value
|
|---|---|
|
Product form
|
Hand-carried DC EV charger with top handle
|
|
Cooling method
|
Air cooling
|
|
Display
|
2.3-inch LED display
|
|
Cable length
|
2.5 m standard; customizable
|
|
IP rating
|
IP54
|
|
Incoming frequency
|
50/60 Hz
|
|
Working temperature
|
−20°C to +50°C
|
|
Optional communication
|
Catalog shows OCPP and 4G under “Optional”; OCPP version not stated
|
|
Optional remote control
|
Bluetooth and Wi-Fi icons appear under “Optional”
|
IP54 S07 DC Charger with Catalog-Listed Protections
The S07 catalog lists an IP54 rating and a −20°C to +50°C working temperature range. It shows over-temperature, short-circuit and over-current protection icons. A CE mark appears on the S07 catalog page.
Configure S07 for Your DC Charging Project
Share your destination market, DC connector standard, site AC 220 V supply, input plug requirement, cable length and order quantity. YANTU will confirm the selected S07 configuration and provide a project quotation.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Power and output current
|
7 kW with a catalog-listed 0–23 A output-current range; higher power versions are not checked for S07.
|
|
DC connector
|
Choose CCS2, CCS1, CHAdeMO or GB/T for the target market; one connector per unit.
|
|
Site supply and input plug
|
AC 220 V ±20% input. The photo shows one three-pin plug; input plugs for other regions can be customized by order. State the required plug for quotation.
|
|
Cable length
|
2.5 m standard cable; custom lengths available by order.
|
|
Optional functions
|
Catalog shows optional OCPP/4G communication and Bluetooth/Wi-Fi remote-control options; final configuration is confirmed with the order.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
Minimum order quantity: 20 units for S07 and other S-series models.
|
|
Production lead time
|
30 days for a standard, non-customized S07 order; customized timing depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
S07 Hand-Carried DC Charger FAQ
Q1. Which S07 power version is listed? Only 7 kW has connector check marks in the S07 catalog. The 15, 20, 30 and 40 kW columns are blank for this model.
Q2. Which vehicle connector standards are available? CCS2, CCS1, CHAdeMO and GB/T are checked at 7 kW. The catalog lists a single charging connector, so the chosen standard is configured for the order.
Q3. What input, output and plug options are listed? The catalog lists AC 220 V ±20% input, a confirmed DC 200–1000 V continuous output range and 0–23 A output-current range. The pictured input plug is one shown configuration; other regional input plugs can be customized by order.
Q4. How portable is S07? Its top-handled cabinet measures 43 × 21.5 × 15.2 cm and has a 13 kg net weight. It can be moved between prepared charging locations with a suitable AC supply; it is not a wheeled or fixed wall charger.
Q5. What display, cable and protection details are listed? S07 lists a 2.3-inch LED display, a 2.5 m standard customizable cable, air cooling, IP54 and over-temperature, short-circuit and over-current protections.
Q6. What are the optional functions and purchasing terms? The catalog shows optional OCPP/4G communication and Bluetooth/Wi-Fi remote-control icons. S-series MOQ is 20 units; paid samples can be credited against a later order, with 30-day standard production and a 2-year warranty.
