Factory-Backed DC Charging Projects and Quality Control for S03
YANTU supports S03 DC charging projects for importers, distributors and charging operators. We confirm the selected 30 or 40 kW version, regional DC connector, mounting arrangement and charging cable length, then coordinate samples, production checks and delivery planning for the order.
Choose an S03 DC Connector in the Checked 30–40 kW Range
The S03 catalog checks CCS2, CCS1, CHAdeMO and GB/T connector options at 30 and 40 kW only. Its 7, 15 and 20 kW columns have no connector checks. Specify the power rating and connector standard required for your destination market. This matrix shows orderable configurations; it does not mean that one unit carries four connector types.
|
DC connector
|
7 kW
|
15 kW
|
20 kW
|
30 kW
|
40 kW
|
|---|---|---|---|---|---|
|
CCS2
|
Not listed
|
Not listed
|
Not listed
|
✓
|
✓
|
|
CCS1
|
Not listed
|
Not listed
|
Not listed
|
✓
|
✓
|
|
CHAdeMO
|
Not listed
|
Not listed
|
Not listed
|
✓
|
✓
|
|
GB/T
|
Not listed
|
Not listed
|
Not listed
|
✓
|
✓
|
S03 DC Charger Specifications for 30 and 40 kW
S03 has two checked power versions: 30 and 40 kW. The catalog lists AC 400 V input and DC 200–1000 V output for the model. It also prints 0–300 A as one shared output-current range. That range is not a separate rated-current value for either power version; final operating values must be confirmed for the selected configuration.
|
Catalog item
|
30 kW
|
40 kW
|
|---|---|---|
|
AC input voltage
|
400 V
|
400 V
|
|
DC output voltage
|
200–1000 V
|
200–1000 V
|
|
Catalog output-current range
|
0–300 A shared range; not a version-specific rated current
|
0–300 A shared range; not a version-specific rated current
|
|
Unit dimensions
|
Not provided
|
Not provided
|
|
Carton size
|
Not provided
|
Not provided
|
|
Net / gross weight
|
Not provided
|
Not provided
|
|
Shared specification
|
S03 catalog value
|
|---|---|
|
Product type
|
DC EV charging unit
|
|
Mounting options
|
Wall-mounted or pillar-mounted; pillar optional
|
|
Charging cable length
|
3 m standard; customizable
|
|
Networking protocol
|
OCPP 1.6
|
|
Communication option
|
4G optional in catalog
|
|
Display
|
4.3-inch high-brightness color touch screen
|
|
Enclosure rating
|
IP65
|
|
Incoming frequency
|
50/60 Hz
|
|
Working temperature
|
−20°C to +55°C
|
|
RCD protection
|
Type B (AC 30 mA + DC 6 mA), as listed in the catalog
|
IP65 S03 DC Charger with Catalog-Listed Protections

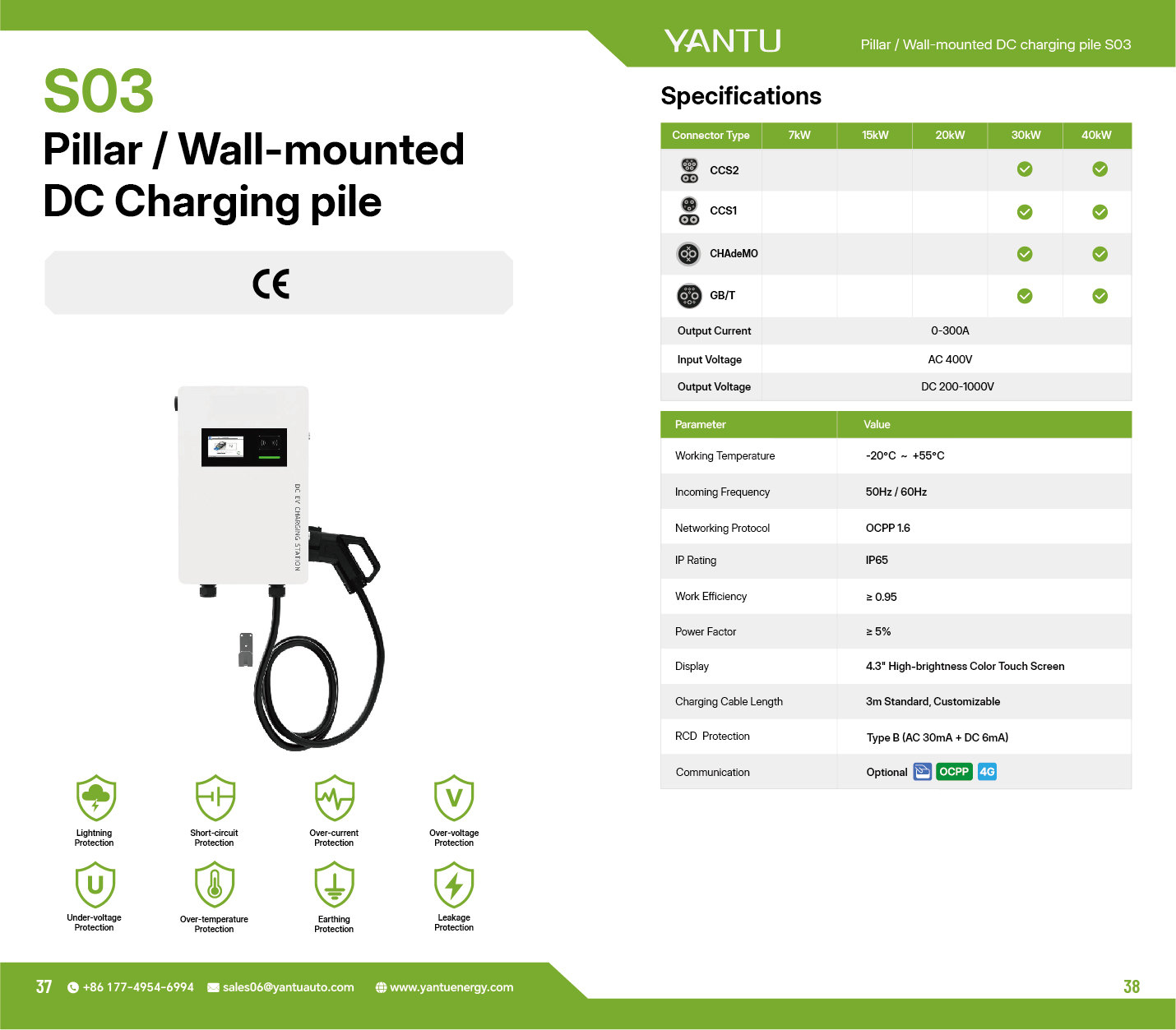

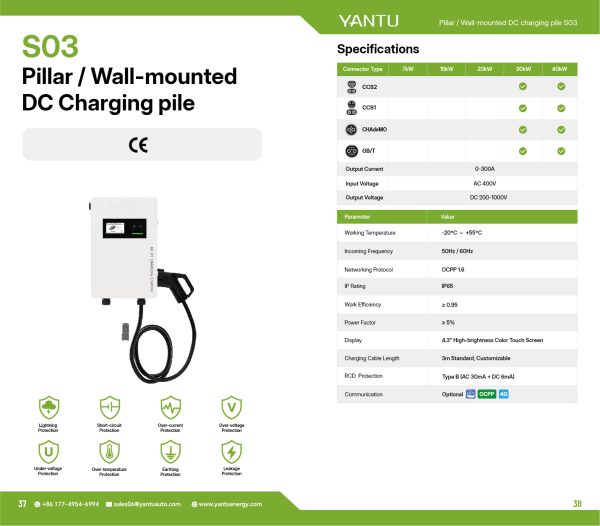

The S03 catalog lists IP65, a working temperature of −20°C to +55°C and Type B RCD protection specified as AC 30 mA plus DC 6 mA. It shows lightning, short-circuit, over-current, over-voltage, under-voltage, over-temperature, earthing and leakage protection icons. The CE mark appears on the S03 catalog page.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Power
|
30 or 40 kW; both are checked with all four catalog connector options.
|
|
DC connector
|
CCS2, CCS1, CHAdeMO or GB/T, selected for the target market.
|
|
Mounting
|
Wall-mounted and pillar-mounted versions are available; the pillar is optional.
|
|
Cable and communication
|
3 m standard charging cable, custom length by order; OCPP 1.6 listed, 4G optional.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
Minimum order quantity: 20 units for S03 and other S-series models.
|
|
Production lead time
|
30 days for a standard, non-customized S03 order; customized timing depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
S03 DC Charger FAQ
Q1. Which S03 power versions are listed? Only 30 and 40 kW have connector check marks in the S03 catalog. Its 7, 15 and 20 kW columns are blank.
Q2. Which DC connector standards can I request? CCS2, CCS1, CHAdeMO and GB/T are each checked at 30 and 40 kW. Specify the connector required for the target market; the matrix does not imply four connectors on one unit.
Q3. What input, output and current range does the catalog give? It lists AC 400 V input and DC 200–1000 V output. The printed 0–300 A is a shared catalog output-current range, not a version-specific rated current for 30 or 40 kW.

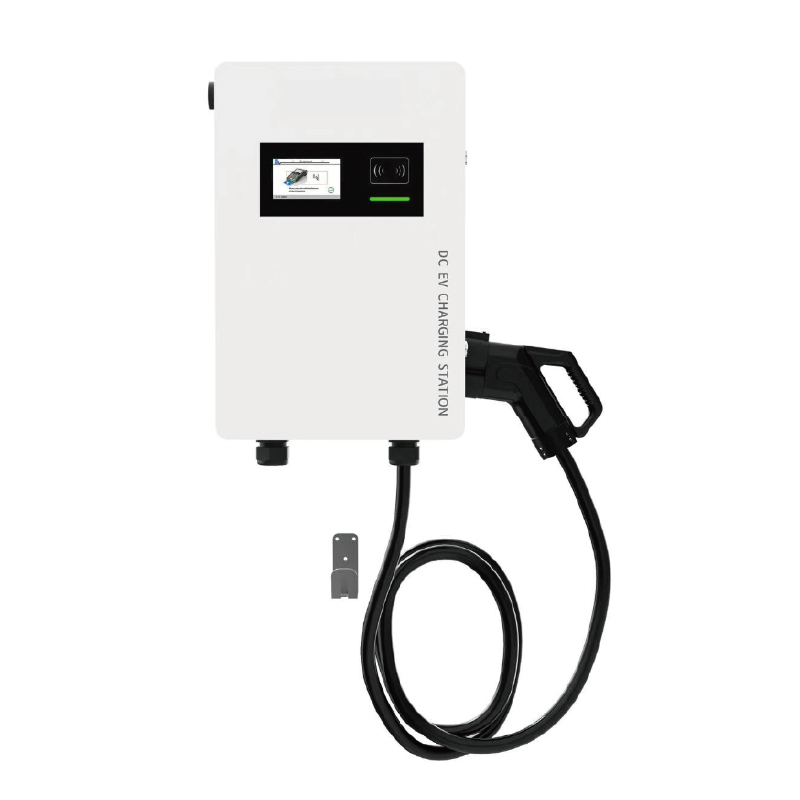

Q4. Can S03 be wall- or pillar-mounted? Yes. Both versions are available, and the pillar is optional. The supplied white-background image does not show a pillar.
Q5. What display, cable and networking features are listed? The catalog lists a 4.3-inch high-brightness color touch screen, a 3 m standard customizable charging cable, OCPP 1.6 and optional 4G.
Q6. What are the enclosure and ordering terms? The catalog lists IP65 and −20°C to +55°C. The S-series MOQ is 20 units; paid samples can be credited against a later order, with 30-day standard production and a 2-year warranty. Dimensions and weights are confirmed during quotation because they are not listed for S03.
