Factory-Backed Type 2 Cable Supply and Quality Control for H02
YANTU supports H02 Type 2 cable projects for importers, distributors and EV charging brands. Our team confirms the required current, phase, length and connector housing details, coordinates samples, and manages production and quality checks before delivery.
Type 2 Male-to-Female Cable Options in Four Checked Power Configurations
H02 connects a socketed Type 2 AC charging point to a Type 2 vehicle inlet. The catalog marks four Type 2 cable options: 3.5 kW / 16 A and 7 kW / 32 A single phase, plus 11 kW / 16 A and 22 kW / 32 A three phase. Choose the cable rating to match the charging point and vehicle. The cable itself does not set charging current or provide a display.
|
H02 Type 2 cable option
|
Rated current
|
Phase
|
Catalog voltage
|
Status
|
|---|---|---|---|---|
|
3.5 kW
|
16 A
|
Single phase
|
AC 240 V
|
Checked
|
|
7 kW
|
32 A
|
Single phase
|
AC 240 V
|
Checked
|
|
11 kW
|
16 A
|
Three phase
|
AC 480 V
|
Checked
|
|
22 kW
|
32 A
|
Three phase
|
AC 480 V
|
Checked
|

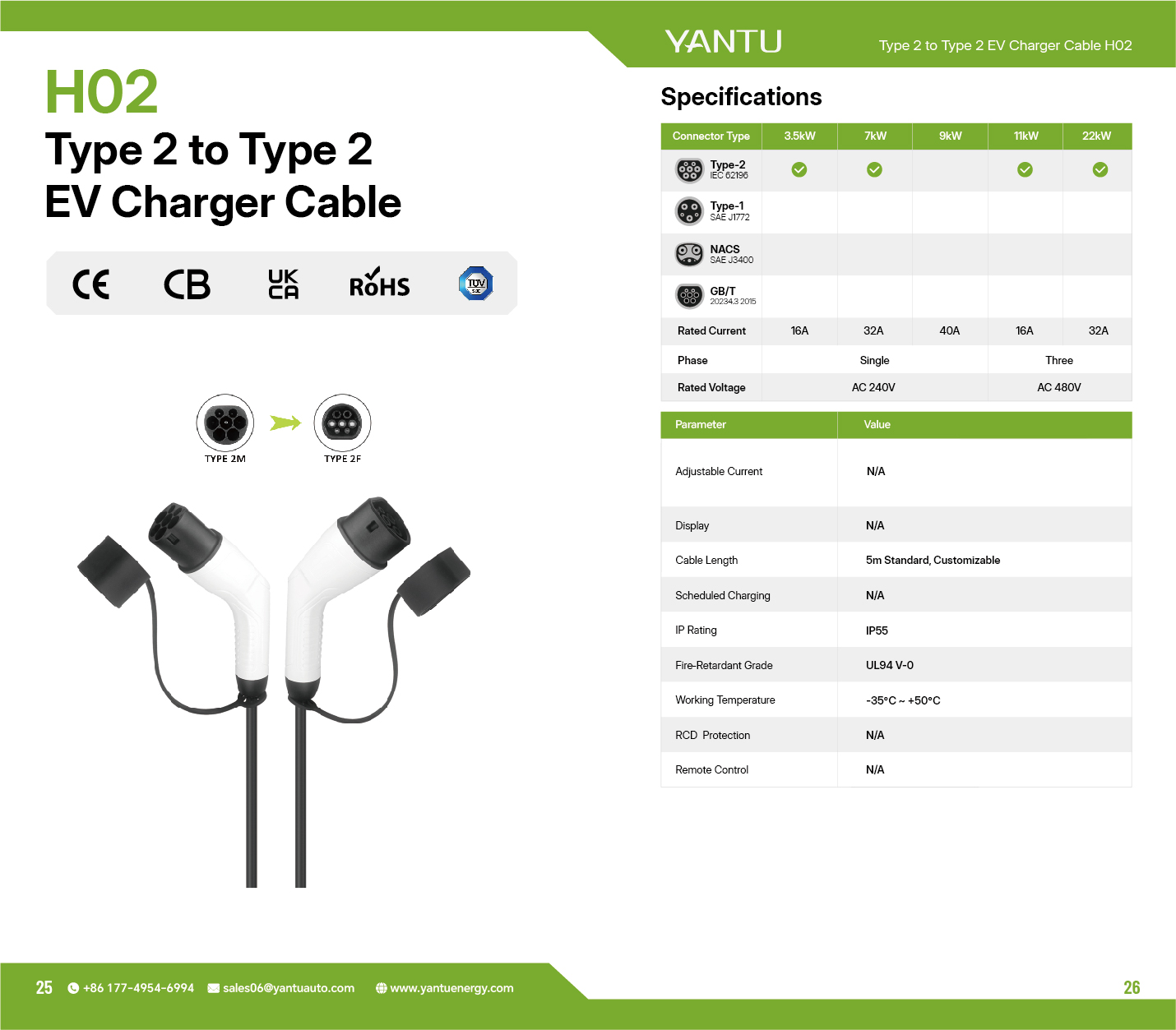

H02 Type 2 Cable Specifications
Use the following catalog values for H02. This is a passive cable, so charger controls and residual-current protection are not built into the cable.
|
Specification
|
H02 value
|
|---|---|
|
Product type
|
Passive Type 2 to Type 2 AC EV charging cable
|
|
Connector configuration
|
Type 2 male to Type 2 female; IEC 62196
|
|
Checked power/current combinations
|
3.5 kW / 16 A; 7 kW / 32 A; 11 kW / 16 A; 22 kW / 32 A
|
|
Phase
|
Single phase for 3.5/7 kW; three phase for 11/22 kW
|
|
Catalog rated voltage
|
AC 240 V for single phase; AC 480 V for three phase
|
|
Cable length
|
5 m standard; customizable
|
|
IP rating
|
IP55
|
|
Fire-retardant grade
|
UL94 V-0
|
|
Working temperature
|
−35°C to +50°C
|
|
Adjustable current / display / scheduled charging
|
Not applicable to the cable
|
|
RCD protection / remote control
|
Not applicable to the cable
|
IP55 Cable Design with CE, CB, UKCA, RoHS and TÜV SÜD Markings
The H02 catalog lists IP55, UL94 V-0 and an operating range of −35°C to +50°C. It displays CE, CB, UKCA, RoHS and TÜV SÜD markings for the H02 product line. The cable has no built-in current selector, screen, charging timer, RCD or remote-control function; charging control and protective equipment belong to the connected charging system.
OEM Type 2 Cable Configuration and B2B Ordering
Share your target market, required power/current rating, cable length and order quantity. YANTU will confirm the H02 configuration, sample plan and commercial terms before production.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Connector and power
|
Type 2 male-to-female cable; checked options are 3.5/7/11/22 kW with the corresponding 16/32/16/32 A ratings.
|
|
Cable length
|
5 m standard; custom lengths available by order.
|
|
Housing appearance
|
H02 is available in the white housing version shown; the connector heads and cable are black.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
50 units for a standard, non-customized H02 order; MOQ for customized orders depends on project scope.
|
|
Production lead time
|
30 days for a standard, non-customized H02 order; customized timing depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
H02 Type 2 Charging Cable FAQ
Q1. Does H02 include a charger or control box? No. H02 is a passive Type 2-to-Type 2 AC charging cable. It connects a compatible socketed charging station and vehicle; the station and vehicle manage charging.

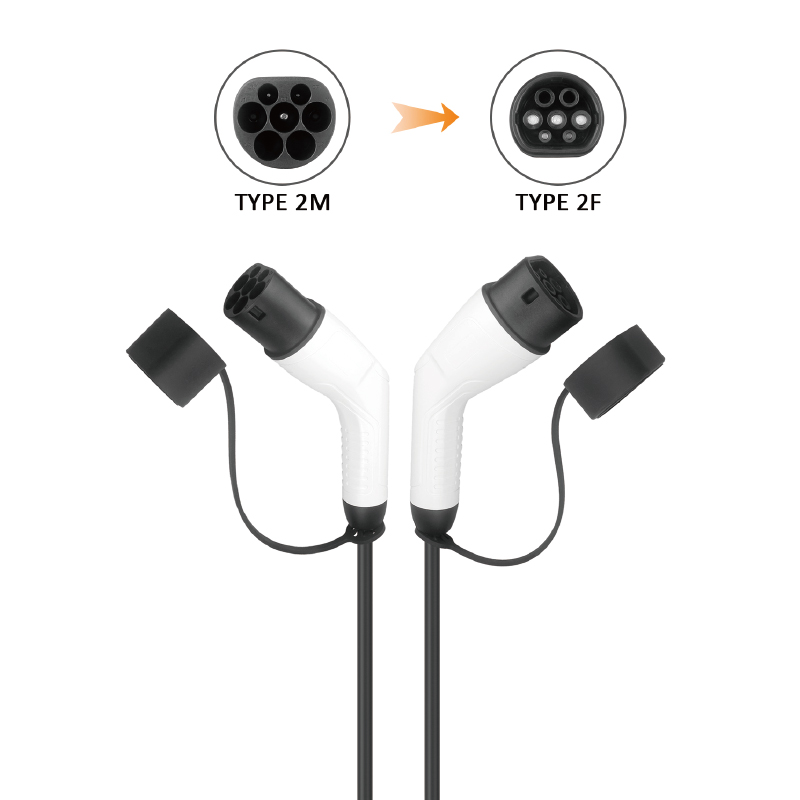

Q2. Which connector standards are available for H02? Only Type 2 is checked in the H02 catalog. The pictured cable uses a Type 2 male end and a Type 2 female end.
Q3. Which H02 power versions can I order? The checked Type 2 versions are 3.5 kW / 16 A, 7 kW / 32 A, 11 kW / 16 A and 22 kW / 32 A. The 9 kW column is not checked for H02.
Q4. What is the standard length? The catalog lists 5 m as standard, with custom lengths available by order.
Q5. What protection and markings does H02 carry? The catalog lists IP55, UL94 V-0 and −35°C to +50°C, and shows CE, CB, UKCA, RoHS and TÜV SÜD markings. Current selection, display, scheduling, RCD and remote control are not cable functions.
Q6. What H02 housing colors and ordering terms are available? Only the white H02 version is available. Paid samples can be credited against a subsequent order; the standard non-customized MOQ is 50 units, with 30-day production and a 2-year warranty.
