Factory-Backed OEM Coordination and Quality Control for D03
YANTU coordinates D03 projects for importers, distributors and EV accessory brands. Our team confirms the target vehicle-side connector, regional power-strip design and order requirements, then coordinates samples, production and quality checks before delivery.
Discharge-Only Configuration and Regional Power-Strip Options
D03 is designed for discharge use only. Select the vehicle-side connector and the power-strip standard required for the target market. The available output is up to 3.5 kW; actual operation depends on a compatible vehicle and the final electrical configuration.
|
Vehicle-side connector
|
Up to 3.5 kW discharge
|
|---|---|
|
Type 2
|
Available
|
|
Type 1
|
Available
|
|
NACS
|
Available
|
|
GB/T
|
Available
|
D03 does not provide EV charging. Confirm vehicle discharge compatibility before ordering; output depends on the vehicle and supply conditions.
|
Power-strip design
|
Order option
|
|---|---|
|
European
|

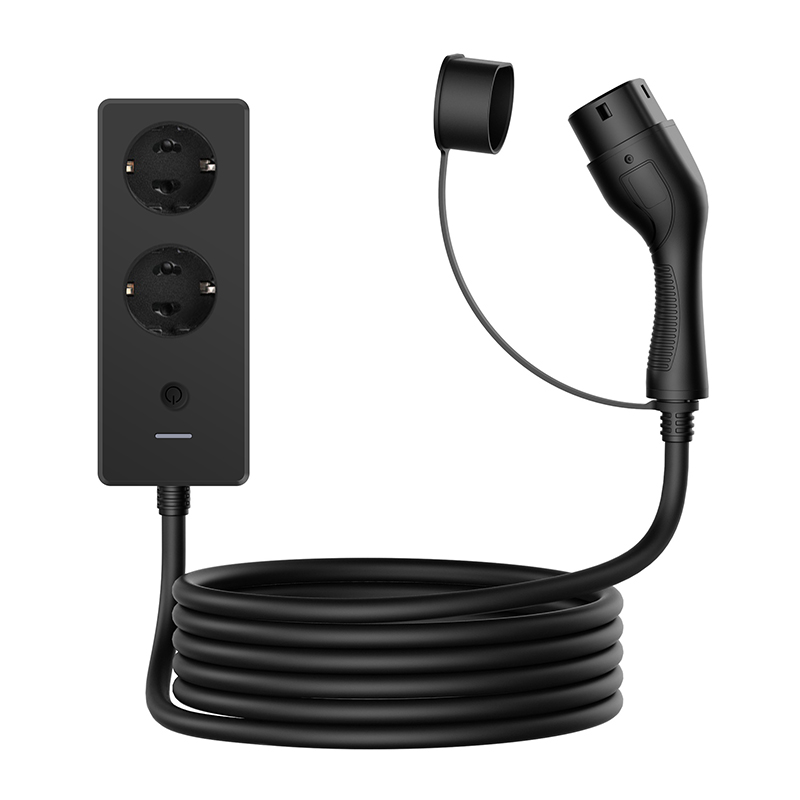

Available; shown in the current product image
|
|
Chinese
|
Available by order
|
|
US
|
Available by order
|
|
Indian
|
Available by order
|
|
UK
|
Available by order
|
|
Brazilian
|
Available by order
|

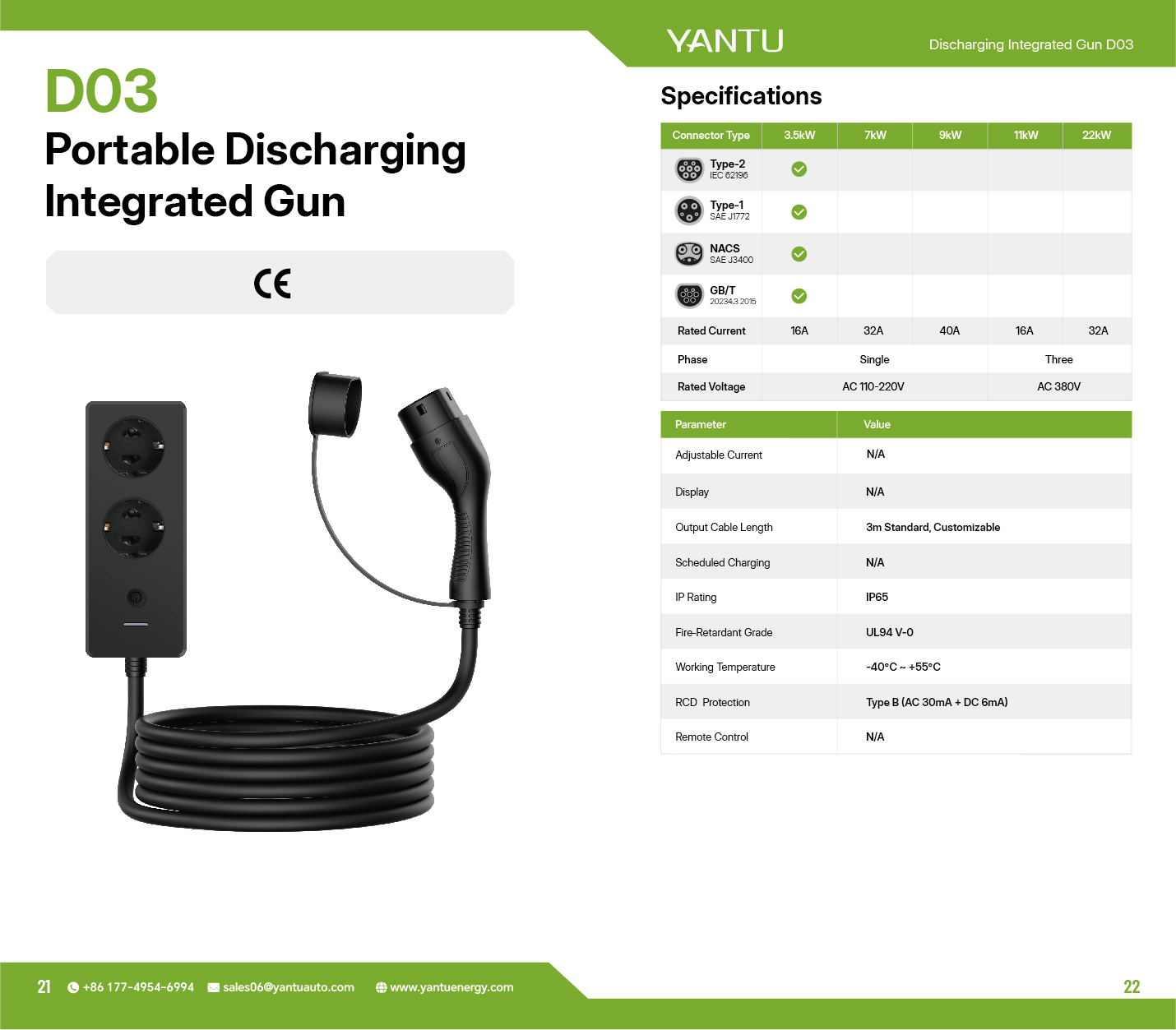

D03 Technical Specifications
The D03 catalog specifies a 16 A single-phase AC 110–220 V discharge configuration. Select the regional outlet and cable length for the order; no charging-current adjustment, charging schedule, display or remote-control feature is listed for D03.
|
Specification
|
D03 value
|
|---|---|
|
Product function
|
EV discharge only; no vehicle charging
|
|
Maximum discharge output
|
Up to 3.5 kW, subject to vehicle and electrical conditions
|
|
Rated AC configuration
|
AC 110–220 V, single phase, 16 A
|
|
Vehicle-side connector
|
Type 2, Type 1, NACS or GB/T
|
|
Power-strip standard
|
European, Chinese, US, Indian, UK or Brazilian, configured by order
|
|
Output cable length
|
3 m standard; custom length available
|
|
IP rating
|
IP65
|
|
Fire-retardant grade
|
UL94 V-0
|
|
Working temperature
|
−40°C to +55°C
|
|
RCD protection
|
Type B (AC 30 mA + DC 6 mA)
|
IP65 Outdoor Protection and CE Mark for D03
D03 has an IP65 rating and a stated working-temperature range of −40°C to +55°C. For outdoor project discussions, show D03 in rainy, sandy and muddy environments with product-specific visuals. The catalog also lists UL94 V-0 and Type B RCD protection (AC 30 mA + DC 6 mA), and displays a CE mark. Confirm the selected configuration and relevant documents with YANTU.
D03 OEM Options and Ordering Information
Share your target market, vehicle-side connector, required regional power-strip design, cable length and quantity. YANTU will confirm the D03 build, sample and quotation.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Discharge connector and output
|
Type 2, Type 1, NACS or GB/T vehicle-side connector options, with up to 3.5 kW discharge.
|
|
Power-strip design
|
European, Chinese, US, Indian, UK or Brazilian outlet design, configured for the order.
|
|
Output cable length
|
3 m standard; custom length available.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
100 units for a standard, non-customized D03 order; MOQ for customized orders depends on the project scope.
|
|
Production lead time
|
30 days for a standard, non-customized D03 order; customized timing depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
Frequently Asked Questions about D03
Q1. Can D03 charge an EV? No. D03 is a discharge-only product for a compatible vehicle; it does not charge the vehicle.
Q2. Which connectors and output ratings are available? The D03 catalog lists Type 2, Type 1, NACS and GB/T vehicle-side connector options at up to 3.5 kW discharge. Confirm compatibility and the final AC configuration for the target vehicle.
Q3. Which power-strip standards can be ordered? European, Chinese, US, Indian, UK and Brazilian outlet designs are available by order. The current D03 product image shows a European-style strip.
Q4. Is D03 suitable for outdoor projects? The catalog lists an IP65 rating and a −40°C to +55°C working-temperature range. Confirm the selected configuration and site conditions with YANTU; the power strip should be used according to the supplied instructions.
Q5. What are the cable length and certification mark? The standard output cable is 3 m, with custom length available. The D03 catalog displays a CE mark; ask YANTU which documents apply to the final order.
Q6. What are the sample, MOQ, lead-time and warranty terms? Samples are charged and the fee can be credited against a later order. Standard non-customized MOQ is 100 units and production lead time is 30 days; customized projects are quoted by scope. D03 has a 2-year warranty.
