Factory-Backed OEM Supply and Quality Control for D01
YANTU supports D01 projects for importers, distributors and EV charging brands. Our team confirms the requested vehicle connector and regional power-strip design, coordinates samples and production, and applies incoming, in-process, final and outgoing quality checks before delivery.
3.5 kW Vehicle Connector Options and Regional Power Strips
D01 pairs a portable EV charging unit with a power-strip accessory. The catalog lists four vehicle connector options at 3.5 kW. Choose the required regional power-strip version for your order; final connector, outlet design and project requirements are confirmed with YANTU.
|
Vehicle connector
|
3.5 kW charging configuration
|
|---|---|
|
Type 2
|
Available
|
|
Type 1
|
Available
|
|
NACS
|
Available
|
|
GB/T
|
Available
|
The 3.5 kW figure above is the cataloged charging configuration. Actual charging power depends on the input voltage and current setting. This is not a stated power-strip output rating.
|
Power-strip version
|
Availability
|
|---|---|
|
European outlet design
|

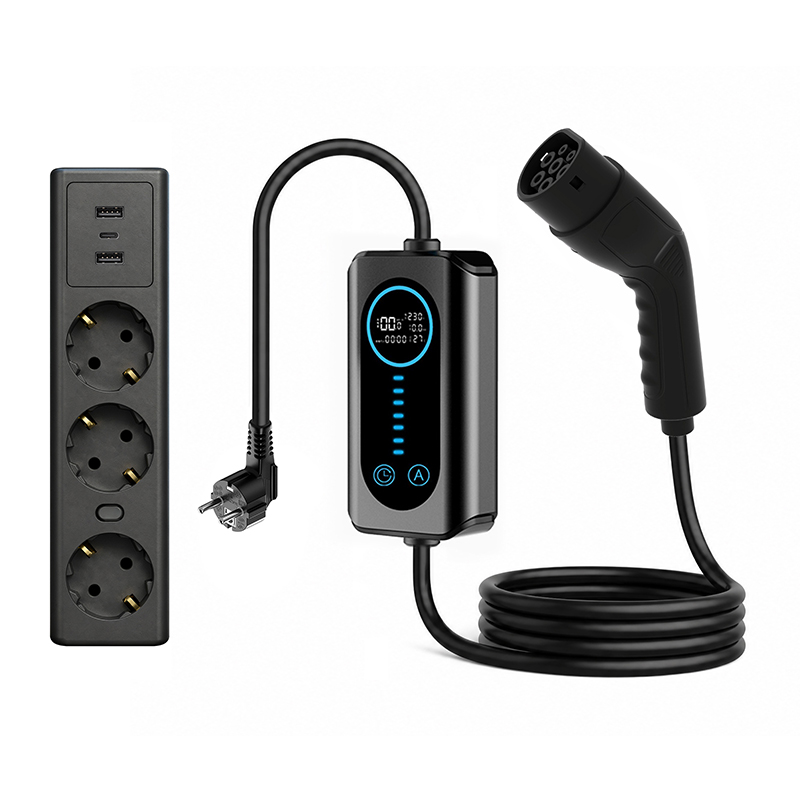

Order-configured option; shown in the current reference photo
|
|
Chinese outlet design
|
Order-configured option
|
D01 Technical Specifications and Options
The published D01 charging configuration is 3.5 kW at 16 A, single phase, AC 110–220 V. Confirm the connector, power-strip design, cable length and optional functions for the final order.
|
Specification
|
D01 value
|
|---|---|
|
Charging power
|
3.5 kW
|
|
Rated input
|
AC 110–220 V, single phase, 16 A
|
|
Adjustable charging current
|
6 / 8 / 10 / 13 / 16 A
|
|
Vehicle connector
|
Type 2, Type 1, NACS or GB/T at the cataloged 3.5 kW configuration
|
|
Power-strip version
|
European or Chinese outlet design, configured by order
|
|
Control box display
|
2.4-inch LED display
|
|
Cable length
|
5 m standard; custom length available
|
|
Scheduled charging
|
0–12 h
|
|
IP rating
|
IP65
|
|
Fire-retardant grade
|
UL94 V-0
|
|
Working temperature
|
−30°C to +50°C
|
|
RCD protection
|
Type B (AC 30 mA + DC 6 mA)
|
|
Remote control
|
Optional; available method and configuration confirmed with the order
|
D01 Safety Protections and CE, UKCA, RoHS and FCC Marks
The D01 catalog lists IP65, UL94 V-0, Type B RCD protection (AC 30 mA + DC 6 mA), and lightning, short-circuit, over-current, over-voltage, under-voltage, over-temperature, earthing and leakage protection. The marks shown for D01 are CE, UKCA, RoHS and FCC. Ask YANTU which documents apply to the selected order configuration.
D01 OEM Options and Ordering Information
Tell YANTU your target market, required vehicle connector, regional power-strip design, cable length and estimated order quantity. Our team will confirm the D01 configuration, sample and quotation.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Charging connector and power
|
Type 2, Type 1, NACS or GB/T at the cataloged 3.5 kW charging configuration.
|
|
Power-strip design
|
European or Chinese outlet design, configured to the order requirements.
|
|
Cable length
|
5 m standard; custom length available.
|
|
Remote control
|
Optional; functionality is confirmed for the quoted build.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
500 units for a standard, non-customized D01 order; MOQ for other customization depends on the project scope.
|
|
Production lead time
|
30 days for a standard, non-customized D01 order; timing for customized orders depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
Frequently Asked Questions about D01
Q1. Which vehicle connectors and charging power are listed for D01? The D01 catalog lists Type 2, Type 1, NACS and GB/T connector options, each at 3.5 kW. The rated input is AC 110–220 V, single phase, 16 A.
Q2. Which power-strip designs can be ordered? European and Chinese outlet designs can be configured by order. The current product image shows the European-style example.
Q3. Can the cable length and current be adjusted? The catalog lists a 5 m standard cable with customizable length and 6/8/10/13/16 A adjustable charging current.
Q4. What display and charging schedule does D01 offer? D01 has a 2.4-inch LED display and a 0–12 h scheduled charging setting.
Q5. Which protection and certification marks are shown? The D01 catalog lists IP65, UL94 V-0 and Type B RCD protection. It displays CE, UKCA, RoHS and FCC marks. Ask YANTU for documents relevant to the final order configuration.
Q6. What are the sample, MOQ, lead-time and warranty terms? Samples are charged and the fee can be credited against a later order. Standard non-customized MOQ is 500 units and production lead time is 30 days; customized projects are quoted by scope. D01 has a 2-year warranty.
