Factory-Backed OEM Supply and Quality Control for C09
YANTU supports C09 projects for importers, distributors and EV accessory brands. Our team reviews the target-market configuration, coordinates samples and production, and applies incoming, in-process, final and outgoing quality checks before delivery.
Connector, Input Plug and Power Options for C09
Choose the vehicle-side connector and power tier for your project, then confirm the input plug and local electrical supply with YANTU. The vehicle connector and AC input plug are separate configuration choices.
|
Vehicle connector
|
3.5 kW
|
7 kW
|
|---|---|---|
|
Type 2
|
Available
|
Available
|
|
Type 1
|
Available
|
Available
|
|
NACS
|
Available
|
Available
|
|
GB/T
|
Available
|
Available
|
The C09 catalog lists all four connector types across the two power tiers shown above. The input plug, electrical setup and vehicle compatibility are confirmed for each order.
|
Power tier
|
Rated input voltage
|
Phase
|
Rated current
|
Adjustable current
|
|---|---|---|---|---|
|
3.5 kW
|
AC 230 V
|
Single phase
|
16 A
|
6 / 8 / 10 / 13 / 16 A
|
|
7 kW
|
AC 230 V
|
Single phase
|
32 A
|
6 / 8 / 10 / 13 / 16 / 20 / 24 / 32 A
|
Schuko, UK 3-pin, NEMA, GB/T, CEE blue and CEE red; the exact plug is selected for the destination market and confirmed quotation.

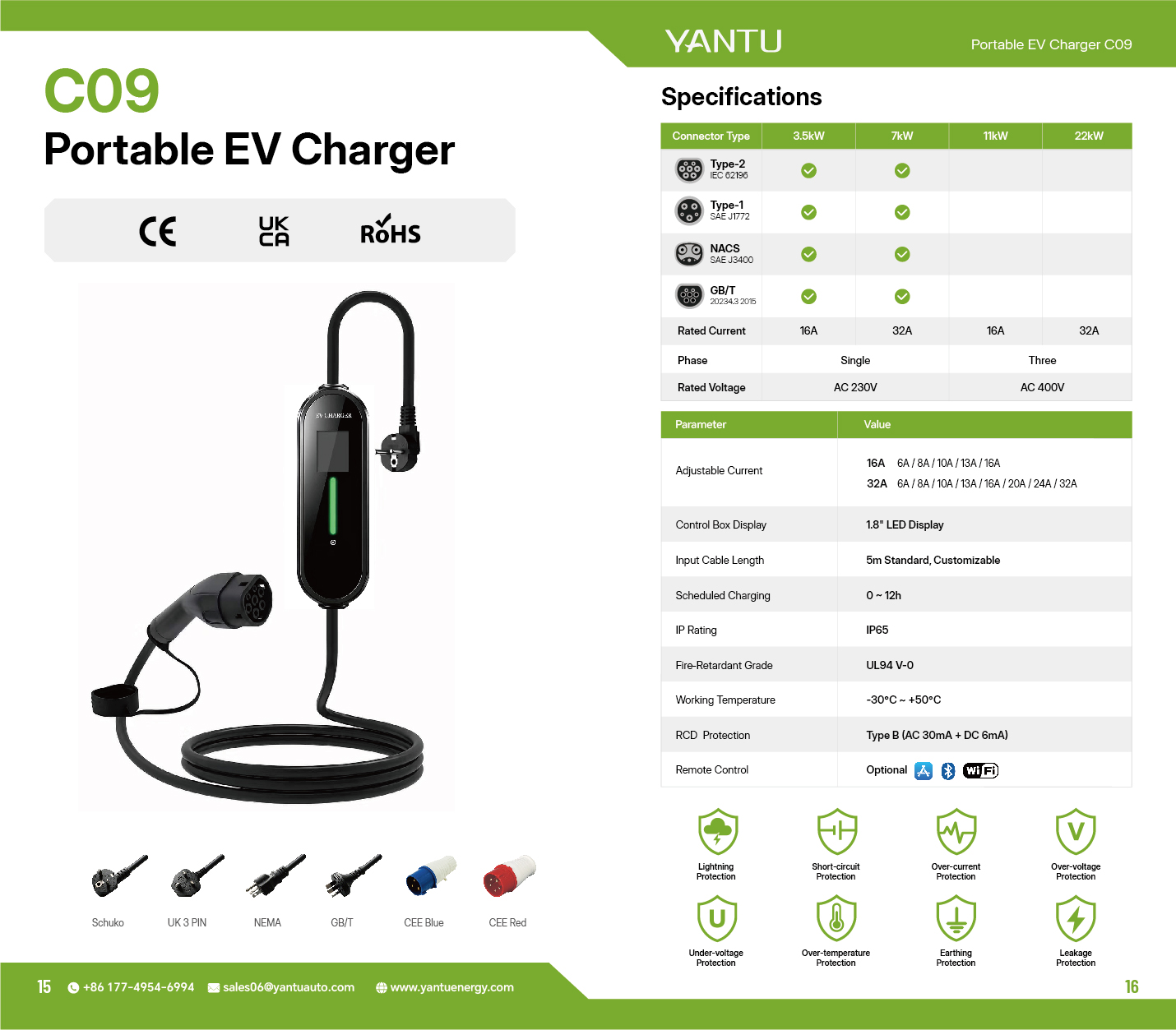

Technical Specifications and Product Options
C09 specifications and optional functions are finalized according to the selected power tier, connector and OEM requirements.
|
Specification
|
C09 value
|
|---|---|
|
Control box display
|
1.8-inch LED display
|
|
Adjustable current
|
16 A build: 6 / 8 / 10 / 13 / 16 A; 32 A build: 6 / 8 / 10 / 13 / 16 / 20 / 24 / 32 A
|
|
Scheduled charging
|
0–12 h
|
|
Vehicle-side charging cable
|
5 m standard; 7 m and 10 m custom lengths available
|
|
IP rating
|
IP65
|
|
Fire-retardant grade
|
UL94 V-0
|
|
Working temperature
|
-30°C to +50°C
|
|
Optional remote control
|
App, Bluetooth and Wi-Fi options, subject to the confirmed configuration
|
|
Optional accessories
|
Storage bag and gun holder available on request
|
Safety Protections and Certification Marks
C09 has an IP65 rating and offers lightning, short-circuit, over-current, over-voltage, under-voltage, over-temperature, earthing and leakage protection. A Type B RCD option (AC 30 mA + DC 6 mA) can be specified for the order. The certification marks listed for C09 are CE, UKCA and RoHS. Ask YANTU which certification and test documents apply to the selected configuration and destination market.
OEM/ODM and Ordering Information for C09
Share your target market, required connector, input plug, power tier, cable length, optional app, Bluetooth or Wi-Fi control needs and estimated quantity. YANTU will confirm the C09 build, sample arrangement and quotation.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Vehicle connector and power
|
Type 1, Type 2, NACS and GB/T options across 3.5 and 7 kW power tiers, as listed in the C09 configuration matrix.
|
|
Input plug
|
Selected according to the destination market, local supply and confirmed power configuration.
|
|
Cable length
|
5 m vehicle-side cable as standard; 7 m and 10 m custom lengths available.
|
|
Remote-control option
|
Optional app, Bluetooth and Wi-Fi control features can be reviewed for the requested configuration.
|
|
Safety option
|
Optional Type B RCD upgrade (AC 30 mA + DC 6 mA).
|
|
Accessories and branding
|
Storage bag, gun holder, branding and packaging options are available for OEM projects.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
50 units for a standard, non-customized C09 order; MOQ for other customization depends on the project scope.
|
|
Production lead time
|
30 days for a standard, non-customized C09 order; timing for customized orders depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
Frequently Asked Questions about C09
Q1. Can C09 be configured for my market and vehicle connector?
Yes. The C09 catalog lists Type 1, Type 2, NACS and GB/T options across two power tiers. Share your destination market, vehicle inlet and local power supply so YANTU can confirm the input plug and final configuration.
Q2. Are remote control and Type B RCD standard?
No. Remote control and Type B RCD are optional configurations; confirm the required combination in the quotation.
Q3. What are the sample, MOQ and lead-time terms?
Samples are charged, with the sample fee creditable against a subsequent order. The standard non-customized MOQ is 50 units and production lead time is 30 days; customized projects are quoted individually.
Q4. What warranty and certification information is available?
C09 has a 2-year warranty. The product catalog displays CE, UKCA and RoHS marks; ask our team which documents apply to your final configuration and destination market.
