Manufacturing, Quality Control and OEM Supply for C01
YANTU supports C01 projects for importers, distributors and EV accessory brands with configuration review, sample validation, production coordination and quality checks before delivery. Tell us your target market and order requirements to confirm the right build.
Connector, Input Plug and Power Options for C01
The vehicle connector connects the C01 to the EV inlet, while the input plug connects it to the local AC supply. These are separate configuration choices: select a supported connector and power tier below, then confirm the input plug and electrical conditions for your target market with YANTU.
|
Vehicle connector
|
3.5 kW
|
7 kW
|
11 kW
|
22 kW
|
|---|---|---|---|---|
|
Type 2
|
Available
|
Available
|
Available
|
Available
|
|
Type 1
|
Available
|
Available
|
—
|
—
|
|
NACS
|
Available
|
Available
|
—
|
—
|
|
GB/T
|
Available
|
Available
|
Available
|
Available
|
Availability follows the C01 connector and power matrix. The final input plug, rated electrical setup, vehicle-side cable length and order reference are confirmed for each project; the table does not imply that every input plug can be combined with every power tier.
|
Power tier
|
Rated input voltage
|
Phase
|
Rated current
|
Adjustable current settings
|
|---|---|---|---|---|
|
3.5 kW
|
AC 230 V
|
Single phase
|
16 A
|
6 / 8 / 10 / 13 / 16 A
|
|
7 kW
|
AC 230 V
|
Single phase
|
32 A
|
6 / 8 / 10 / 13 / 16 / 20 / 24 / 32 A
|
|
11 kW
|
AC 400 V
|
Three phase
|
16 A
|
6 / 8 / 10 / 13 / 16 A
|
|
22 kW
|
AC 400 V
|
Three phase
|
32 A
|
6 / 8 / 10 / 13 / 16 / 20 / 24 / 32 A
|

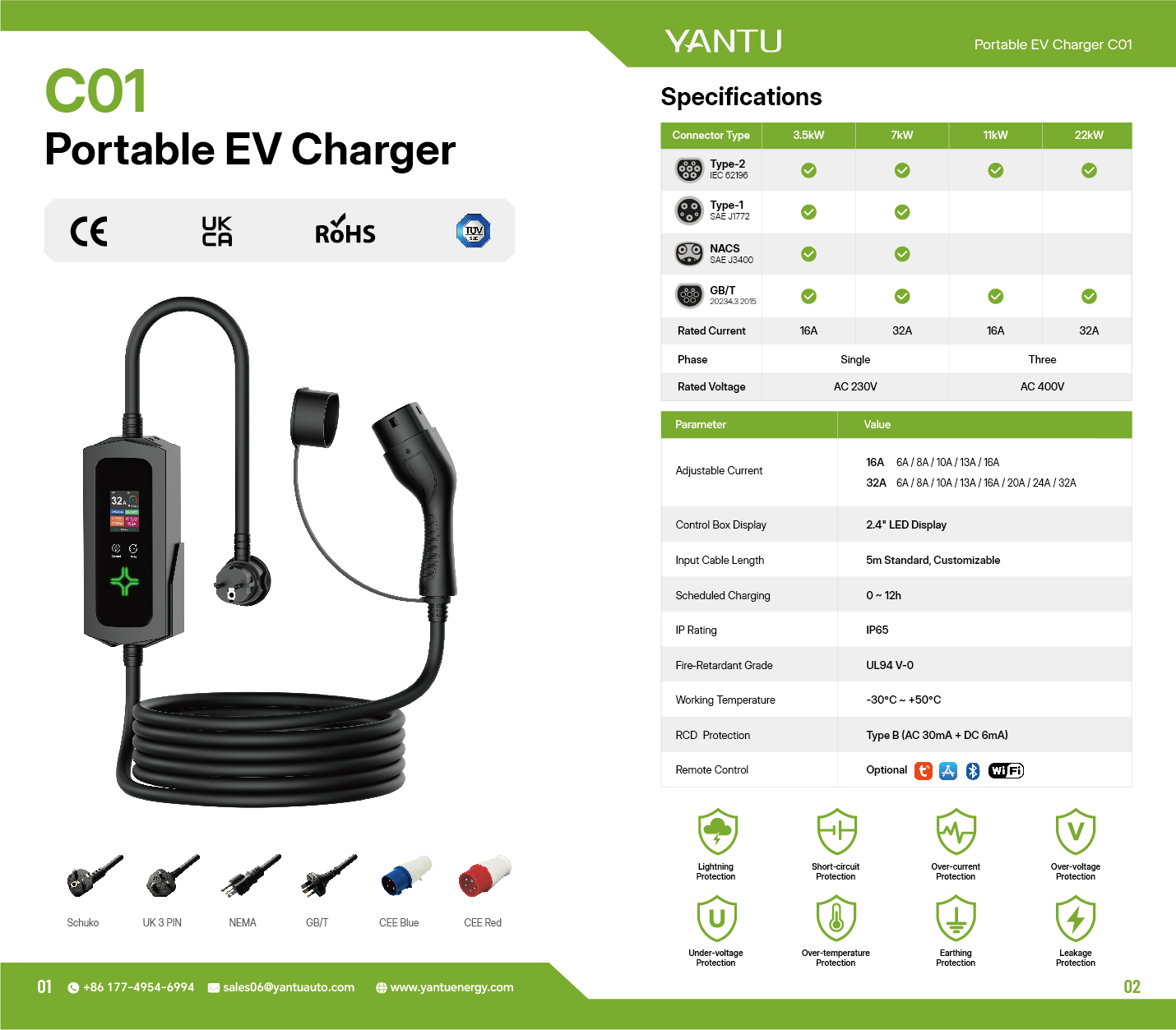

Technical Specifications and Product Options
C01 specifications vary by selected power and connector configuration. Confirm the electrical supply, input plug and order options before production.
|
Specification
|
Value for C01 page
|
|---|---|
|
Control box display
|
2.4-inch LED display
|
|
Adjustable current
|
16 A build: 6 / 8 / 10 / 13 / 16 A; 32 A build: 6 / 8 / 10 / 13 / 16 / 20 / 24 / 32 A
|
|
Time-setting function
|
0–12 h
|
|
Vehicle-side charging cable
|
5 m standard; 7 m and 10 m custom lengths available
|
|
Working temperature
|
-30°C to +50°C
|
|
IP rating
|
IP65
|
|
Optional smart control
|
App, Wi-Fi, Bluetooth and Tuya options, subject to project confirmation
|
|
Package and accessories
|
Storage bag and gun holder available on request; final package contents confirmed with the order.
|
Safety Protections and Certification Marks for C01
C01 has an IP65 rating and can be configured with an optional Type B RCD upgrade (AC 30 mA + DC 6 mA). The certification marks listed for C01 are CE, UKCA, RoHS and TÜV SÜD. Ask YANTU which certification and test documents apply to the selected configuration and destination market.
OEM/ODM and Ordering Information for C01
YANTU can configure C01 for your target market and brand project. Share the required connector, local input plug, power tier, cable length, smart-control needs and estimated quantity so we can confirm a build and quotation.
|
Ordering item
|
Customer-facing copy
|
|---|---|
|
Vehicle connector
|
Type 1, Type 2, NACS or GB/T options; supported power tiers follow the C01 configuration matrix.
|
|
Input plug
|
Selected for the destination market, electrical supply and confirmed power configuration.
|
|
Cable length
|
5 m vehicle-side cable as standard; 7 m and 10 m lengths available for custom orders.
|
|
Smart features
|
App, Wi-Fi, Bluetooth and Tuya options can be reviewed for the project.
|
|
Safety option
|
Optional Type B RCD upgrade (AC 30 mA + DC 6 mA), confirmed by configuration.
|
|
Accessories
|
Storage bag and gun holder available on request.
|
|
Branding and packaging
|
Branding and packaging requests are assessed as part of the OEM quotation.
|
|
Samples
|
Paid samples are available; the sample fee can be credited against a subsequent order.
|
|
MOQ
|
50 units for a standard, non-customized C01 order; Custom project MOQ depends on the requested changes.
|
|
Production lead time
|
30 days for a standard, non-customized C01 order; timing for custom projects depends on the final specification.
|
|
Warranty
|
2-year warranty; coverage details are confirmed with the order.
|
|
Compliance support
|
Testing and documentation needs can be reviewed for the confirmed configuration and target market.
|
Frequently Asked Questions about C01
Q1. Can C01 be configured for my target market?
Yes. C01 offers Type 1, Type 2, NACS and GB/T vehicle connector options with different supported power tiers. Share the destination market, EV inlet and local power supply so YANTU can confirm the input plug and suitable build.
Q2. Are smart controls and Type B RCD protection included as standard?
No. App, Wi-Fi, Bluetooth, Tuya and Type B RCD options are reviewed for the requested configuration. YANTU will confirm the available combination in the quotation.
Q3. What are the sample terms, MOQ and production lead time?
Samples are charged, and the sample fee can be credited against a subsequent order. For a standard non-customized C01 order, the MOQ is 50 units and the production lead time is 30 days; Customized projects are quoted according to the requested scope.
Q4. What warranty and compliance support are available?
C01 has a 2-year warranty, with coverage terms confirmed in the order documents. The C01 catalog displays CE, UKCA, RoHS and TÜV SÜD marks. Ask YANTU which documents apply to the final configuration and target market.
